Flecs

소개

Flecs는 C89 / C99 / C++11를 위한 빠르고, 가벼운 Entity Component System(ECS) 빌드 툴이다.

아래는 foot-print 목록이다.

• Blazing fast iteration speeds with direct access to raw C arrays across multiple components
• Built-in support for entity hierarchies, prefabs, nested prefabs and prefab variants
• An efficient lock-free architecture allows for modifying entities across multiple threads
• Expressive entity queries with support for and, or, not and optional operators
• Systems that are time triggered, rate triggered, run every frame or run only when needed
• A customizable core that lets you include only the features you need



1. Entity Component System

 ECS란 무엇일까?

한줄로 표현하자면, 데이터 목적(data-oriented)으로 코딩을 하는 시스템이다. (게임에 많이 쓰임)

ECS에는 아래 3가지의 핵심 키워드가 있다.

• entity (독립체) : 독립체들, things, indices, ID라고 생각하면 편하고, 값을 갖고 있지 않음
• component (요소) : 데이터, entity로 정리되기 보단, 데이터 자체로 정리됨 (data-oriented)
• system (체계) : 데이터를 변형하기 위한 코드

system 예제) 모든 독립체들이 프레임마다 움직일 때 위치를 업데이트 해줌



정리

• 각 entity들은 unique ID를 갖는다.
• component는 plain 데이터 타입을 갖는다.
• system은 component 기반 entity들에 맞는 행동들을 제어한다.



2. Flecs 라이브러리

우선 라이브러리를 사용하려면 아래 두 파일을 작업 환경에 추가한다.

flec.c

0.60MB

flec.h

0.28MB

github.com/SanderMertens/flecs/blob/master/flecs.c

github.com/SanderMertens/flecs/blob/master/flecs.h



1. Hello World

#include "flec.h"

typedef struct Position {
    float x;
    float y;
} Position;

int main(int argc, char *argv[]) {
    /* Create the world, pass arguments for overriding the number of threads,fps
     * or for starting the admin dashboard (see flecs.h for details). */
    ecs_world_t *world = ecs_init_w_args(argc, argv);

    /* Register a component with the world. */
    ECS_COMPONENT(world, Position);

    /* Create a new empty entity  */
    ECS_ENTITY(world, MyEntity, 0);

    /* Set the Position component on the entity */
    ecs_set(world, MyEntity, Position, {10, 20});

    /* Get the Position component */
    const Position *p = ecs_get(world, MyEntity, Position);

    printf("Position of %s is {%f, %f}\n",
        ecs_get_name(world, MyEntity), p->x, p->y);

    /* Cleanup */
    return ecs_fini(world);
}

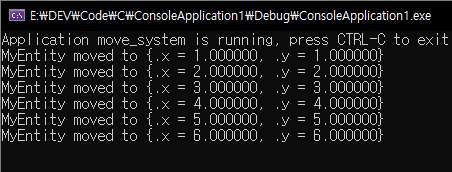

2. Move System (프레임마다  1.0 좌표 이동)

#include "flec.h"

/* Component types */
typedef struct Vector2D {
    float x;
    float y;
} Vector2D;

/* Typedefs can be used as component types */
typedef Vector2D Position;
typedef Vector2D Velocity;

/* Implement a simple move system */
void Move(ecs_iter_t *it) {
    /* Get the two columns from the system signature */
    ECS_COLUMN(it, Position, p, 1);
    ECS_COLUMN(it, Velocity, v, 2);

    for (int i = 0; i < it->count; i ++) {
        p[i].x += v[i].x;
        p[i].y += v[i].y;

        /* Print something to the console so we can see the system is being
         * invoked */
        printf("%s moved to {.x = %f, .y = %f}\n",
            ecs_get_name(it->world, it->entities[i]),
            p[i].x, p[i].y);
    }
}

int main(int argc, char *argv[]) {
    /* Create the world, pass arguments for overriding the number of threads,fps
     * or for starting the admin dashboard (see flecs.h for details). */
    ecs_world_t *world = ecs_init_w_args(argc, argv);

    /* Register components */
    ECS_COMPONENT(world, Position);
    ECS_COMPONENT(world, Velocity);

    /* Define a system called Move that is executed every frame, and subscribes
     * for the 'Position' and 'Velocity' components */
    ECS_SYSTEM(world, Move, EcsOnUpdate, Position, Velocity);

    /* Create an entity with Position and Velocity. Creating an entity with the
     * ECS_ENTITY macro is an easy way to create entities with multiple
     * components. Additionally, entities created with this macro can be looked
     * up by their name ('MyEntity'). */
    ECS_ENTITY(world, MyEntity, Position, Velocity);

    /* Initialize values for the entity */
    ecs_set(world, MyEntity, Position, {0, 0});
    ecs_set(world, MyEntity, Velocity, {1, 1});

    /* Set target FPS for main loop to 1 frame per second */
    ecs_set_target_fps(world, 1);

    printf("Application move_system is running, press CTRL-C to exit...\n");

    /* Run systems */
    while ( ecs_progress(world, 0));

    /* Cleanup */
    return ecs_fini(world);
}

3. Sorting

#include "flec.h"

typedef struct Position {
    float x;
    float y;
} Position;

/* Order by x member of Position */
int compare_position(
    ecs_entity_t e1,
    void* ptr1,
    ecs_entity_t e2,
    void* ptr2)
{
    Position* p1 = ptr1;
    Position* p2 = ptr2;
    return p1->x - p2->x;
}

/* Iterate query, printed values will be ordered */
void print_query(ecs_query_t* q) {
    ecs_iter_t it = ecs_query_iter(q);
    while (ecs_query_next(&it)) {
        Position* p = ecs_column(&it, Position, 1);

        int32_t i;
        for (i = 0; i < it.count; i++) {
            printf("{%f, %f}\n", p[i].x, p[i].y);
        }
    }
}

int main(int argc, char* argv[]) {
    ecs_world_t* world = ecs_init();

    ECS_COMPONENT(world, Position);

    /* Create entities, set Position in random order */
    ecs_entity_t e = ecs_set(world, 0, Position, { 3, 0 });
    ecs_set(world, 0, Position, { 1, 0 });
    ecs_set(world, 0, Position, { 6, 0 });
    ecs_set(world, 0, Position, { 2, 0 });
    ecs_set(world, 0, Position, { 5, 0 });
    ecs_set(world, 0, Position, { 4, 0 });

    /* Create a query for component Position */
    ecs_query_t* q = ecs_query_new(world, "Position");

    /* Order by Position component */
    ecs_query_order_by(world, q, ecs_entity(Position), compare_position);

    /* Iterate query, print values of Position */
    printf("-- First iteration\n");
    print_query(q);

    /* Change the value of one entity, invalidating the order */
    ecs_set(world, e, Position, { 7, 0 });

    /* Iterate query again, printed values are still ordered */
    printf("\n-- Second iteration\n");
    print_query(q);

    /* Cleanup */
    return ecs_fini(world);
}



참고 : https://github.com/SanderMertens/flecs
